Motorcycle - Suspension Fluid

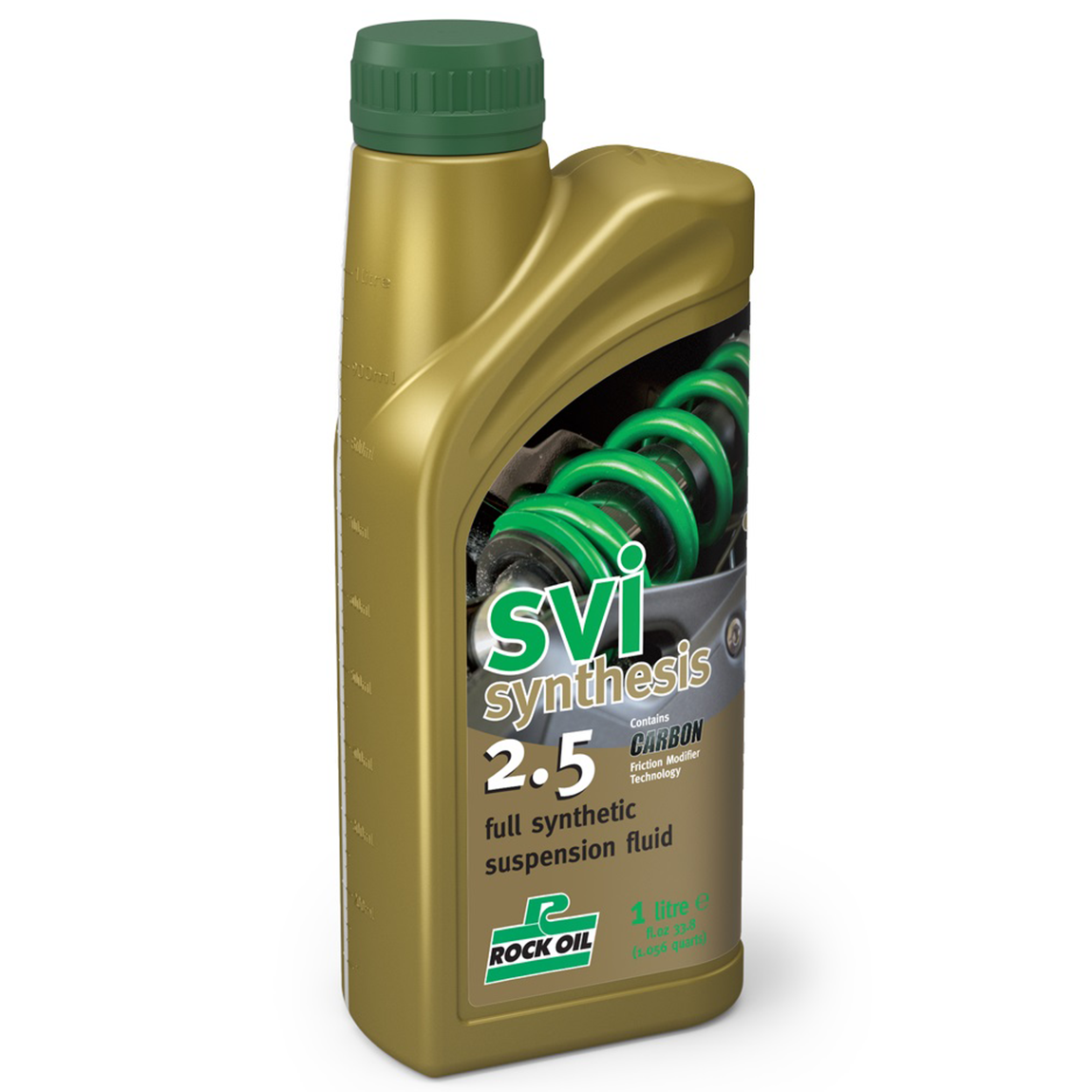

Synthetic SVI 2.5
Suspension Fluids
view bottle

Packing: 1L

Synthetic SVI Suspension Fluids
(SVI 2.5)

SVI Suspension Fluids are blended using technologically advanced synthetics together with the very latest additive technology to improve foaming tendencies and prolong seal life.

Features
  • Extremely high viscosity index to maintain damping at elevated temperature whilst ensuring correct suspension operation at low temperatures.
  • Stable under pressure and are compatible with air, nitrogen or argon charged suspension systems.
  • Suitable for use in cartridge forks, in particular SVI 5 (Cartridge 01).
  • Should the need for more precise damping be required SVI Suspension Fluids range are all fully compatible with each other and will mix with ease.
  • Excellent anti-wear protection and a high resistance to water contamination and degradation.
  • Excellent performance and longer service life, especially under extreme conditions of use such as racing.

Typical Physical Characteristics
Product SVI 2.5
ISO VG ??
Density @ 15° C ??
Viscosity@40°C (cSt) ??
Viscosity@100°C (cSt) 2.5
Viscosity Index 2.5

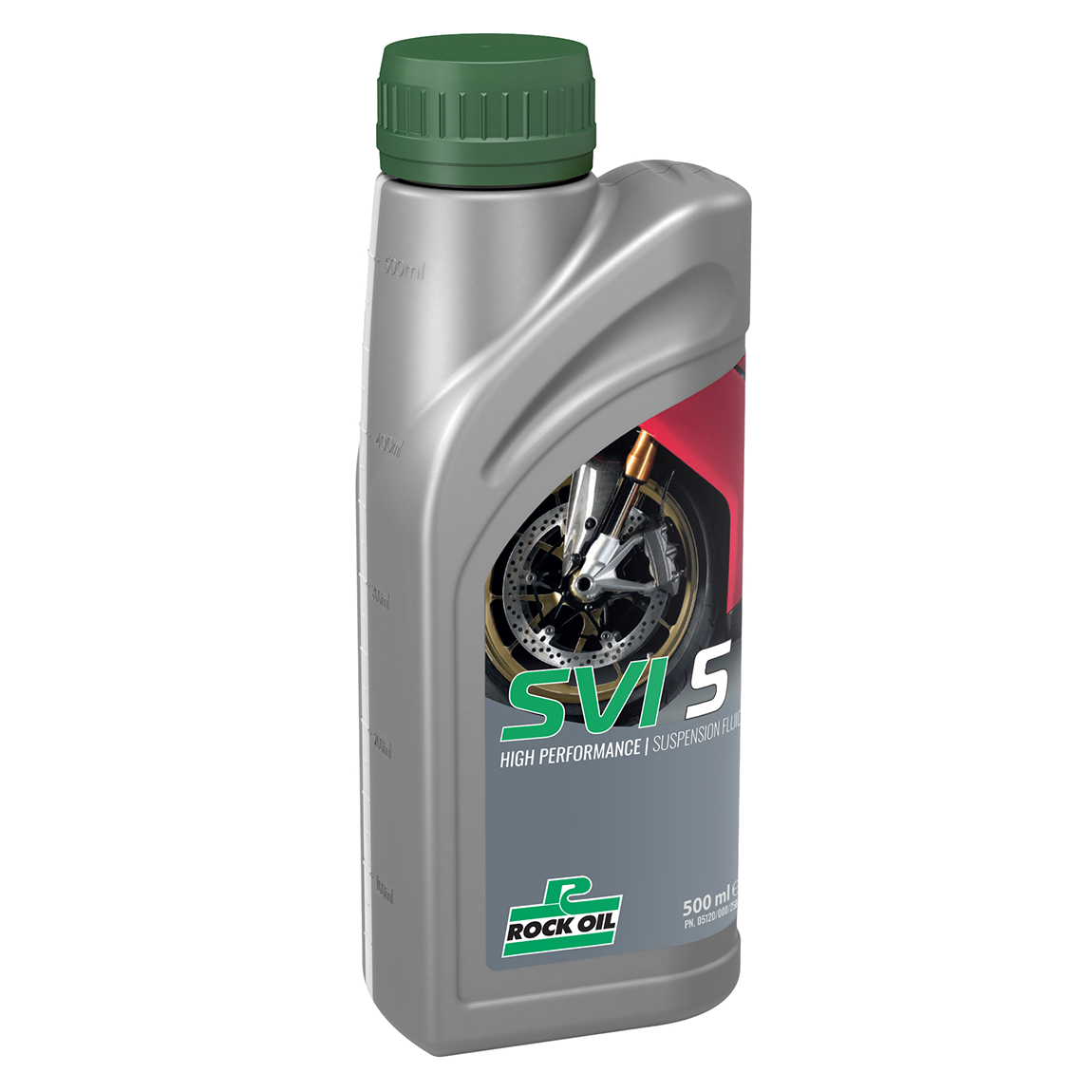

SVI Suspension Fluids
view bottle

Packing: 500 mL

SVI Suspension Fluids
(SVI 5 / SVI 7.5 / SVI 10 /SVI 15 / SVI 20 / SVI 30)

SVI Suspension Fluids are blended using technologically advanced synthetics together with the very latest additive technology to improve foaming tendencies and prolong seal life.

Features
  • Extremely high viscosity index to maintain damping at elevated temperature whilst ensuring correct suspension operation at low temperatures.
  • Stable under pressure and are compatible with air, nitrogen or argon charged suspension systems.
  • Suitable for use in cartridge forks, in particular SVI 5 (Cartridge 01).
  • Should the need for more precise damping be required SVI Suspension Fluids range are all fully compatible with each other and will mix with ease.
  • Excellent anti-wear protection and a high resistance to water contamination and degradation.
  • Excellent performance and longer service life, especially under extreme conditions of use such as racing.

Typical Physical Characteristics
Product SVI 5 SVI 7.5 SVI 10 SVI 15 SVI 20 SVI 30
ISO VG 15 22 32 46 68 100
Density @ 15° C 0.850 0.857 0.867 0.870 0.879 0.880
Viscosity@40°C (cSt) 15.4 22.0 33.2 45.4 67.8 100.0
Viscosity@100°C (cSt) 4.6 6.2 6.8 8.5 9.7 11.3
Viscosity Index 243 259 170 168 145 99
