Rock Oil has vast lubricant experience with a long history of motorsport involvement, including supporting factory teams competing at world level thus ensuring that they are at the forefront of lubrication technology. The Carbon Series marks a major breakthrough for not only the R&D team at Rock Oil but for the lubricant industry as a whole. Utilising the very latest chemical technology it promises to deliver performance and protection for high performance race and road engines. Rock Oil has long supported motorsport in the motorcycle market and lubricated the engines of multiple world champions. This expertise and desire to offer only the best possible products has resulted in the development of the Carbon series. In 2015 the Carbon engine oils were used by the Albatec Rallycross team, Sean Walkinshaw Racing in Formula 4 and also by Japspeed in the British Drift Championship.

Market leading additive technology has been combined with the three types of advanced next generation synthetic base stocks. Independent tests have shown that conventional synthetic ester base oils of the polar type have an affinity for internal engine surfaces which can actually be detrimental for wear protection. (These esters can compete with additives for the surface, reducing additive performance). Our latest non-polar extreme performance esters do not compete with anti-wear additives for the surface hence the step-change in wear protection realised by the Carbon Series products demonstrated below:

The Sequence IV-A (ASTM D6891) is the oil industry's benchmark flat tappet valve-train wear test.

  • API SL Limit = 120 microns maximum wear on cam lobes
  • API SM & SN Limit = 90 microns maximum wear on cam lobes
  • Rock Oil Carbon 5W-30 = 26 microns

In addition to outstanding wear protection, to release full engine power the Rock Oil Carbon Series has been developed to significantly reduce friction through the use of unique organic friction modifier technology.

The Carbon Series was subject to a vigorous and intense succession of development through both field-trials with motorsport partners and extensive laboratory testing. Our vast experience in motorcycle racing ensures all products manufactured in our factory meet the exacting standards required at this level. The range consists of four viscosities 5W-30, 0W-40, 10W-50 & 10W-60, which between them cover all major engine applications in the high performance automotive market. The range can be used in both motorsport and fast road applications and offers users the reassurance that their engine is both protected and releasing maximum power.

Automotive - Racing Lubes

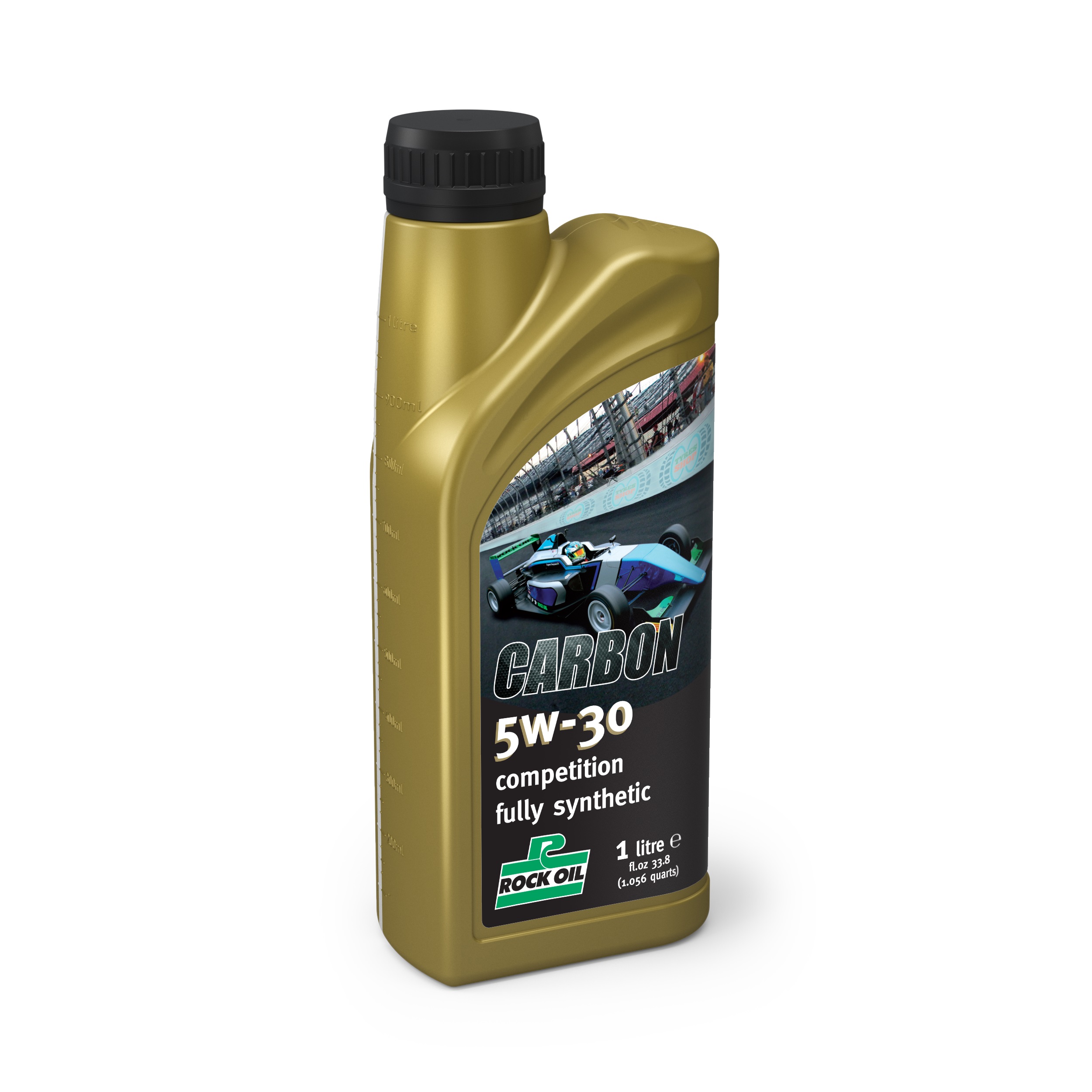

carbon 5w30
view bottle

Packing: 1 L

Carbon Series (Competition Fully Synthetic)

Rock Oil's R&D facility has successfully developed the next generation in 100% synthetic automotive racing oils – the Carbon Series. This development, in conjunction with extensive field-trials with leading racing teams has resulted in a significant breakthrough in lubrication performance.

Market leading additive technology has been combined with the three types of advanced next generation synthetic base stocks. Independent tests have shown that conventional synthetic ester base oils of the polar type have an affinity for internal engine surfaces which can actually be detrimental for wear protection. (These esters can compete with additives for the surface, reducing additive performance).

Our latest non-polar extreme performance esters do not compete with anti-wear additives for the surface hence the step-change in wear protection realised by the Rock Oil Carbon Series products demonstrated below:

The Sequence IV-A (ASTM D6891) is the oil industry's benchmark flat tappet valve-train wear test.

API SL Limit = 120 microns maximum wear on cam lobes
API SM & SN Limit = 90 microns maximum wear on cam lobes
Rock Oil Carbon 5W-30 = 26 microns

In addition to outstanding wear protection, to release full engine power the Rock Oil Carbon Series has been developed to significantly reduce friction through the use of unique organic friction modifier technology.

Features & Benefits

Tri-Synthetic Formula -includes Non-Polar Synthetic Ester, Polyalphaolefin (PAO) and a proprietary next generation fully synthetic base oil

Outstanding resistance to Permanent Viscosity Loss (PVL) through use of active, self healing Viscosity Modifiers - extremely important for highly stressed, tight tolerance racing engines

Exceptionally low NOACK volatility - results in very low oil consumption

Unsurpassed wear protection - especially important for racing applications

Rock Oil Carbon Series specifications:
All grades : API SN, SM, CF
0W-40 only : BMW LL-01, MB 229.5, PORSCHE A40, NISSAN GTR
10W-60 only : BMW 'M' Models

Important Note: The Carbon Series of products are not recommended for road use where vehicles are fitted with after-treatment devices; specifically Diesel Particulate Filters (DPF's).

Typical Physical Characteristics

SAE Viscosity (J300) 5W-30 0W-40 10W-50 10W-60
Density @ 15°C (kg/L) 0.863 0.851 0.860 0.857
Viscosity @ 40°C (cSt) 69.0 82.0 117.0 169.0
Viscosity @ 100°C (cSt) 11.5 14.6 17.6 24.3
Viscosity Index 160 186 166 175

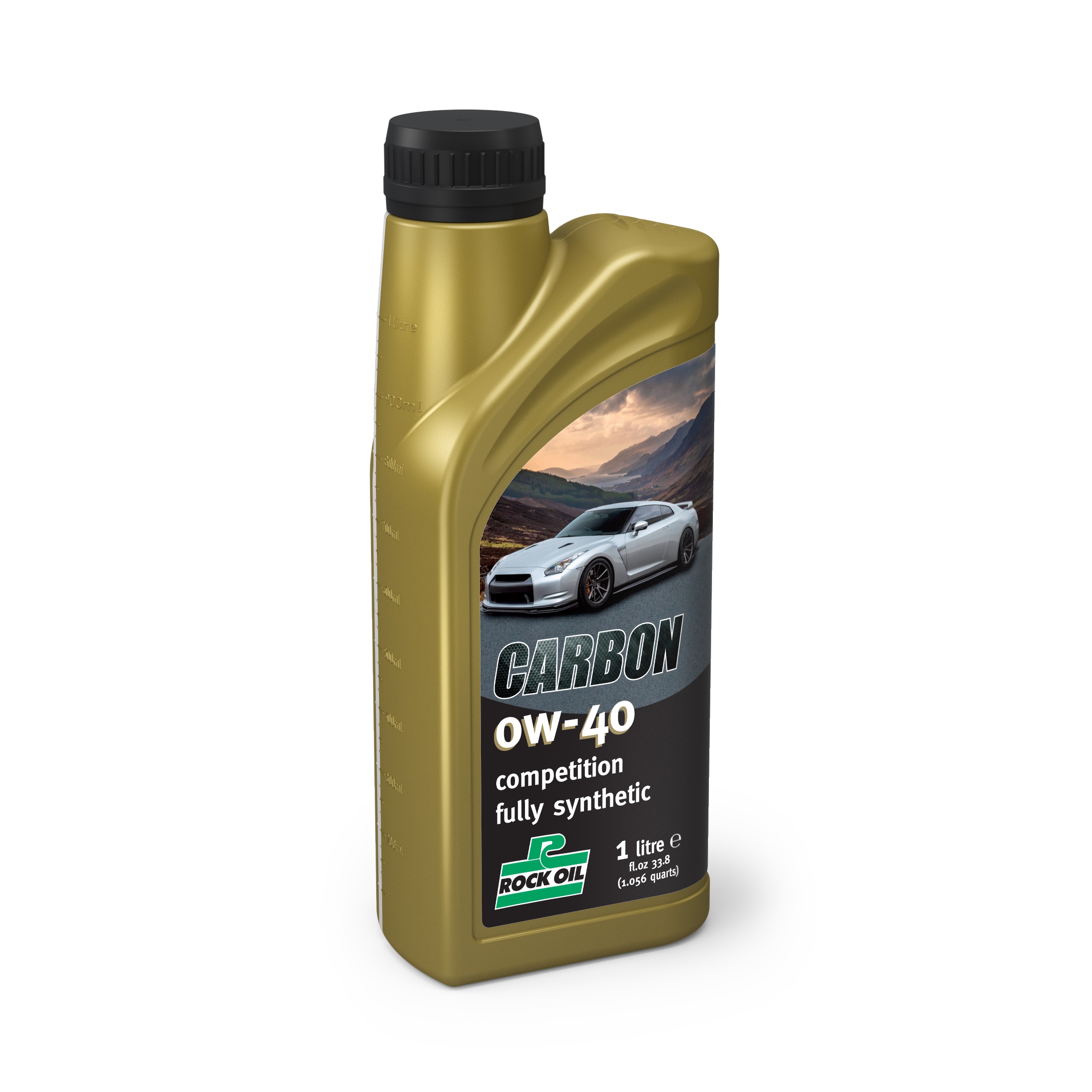

carbon 0w40

Packing: 1 L

Carbon Series (Competition Fully Synthetic)

Rock Oil's R&D facility has successfully developed the next generation in 100% synthetic automotive racing oils – the Carbon Series. This development, in conjunction with extensive field-trials with leading racing teams has resulted in a significant breakthrough in lubrication performance.

Market leading additive technology has been combined with the three types of advanced next generation synthetic base stocks. Independent tests have shown that conventional synthetic ester base oils of the polar type have an affinity for internal engine surfaces which can actually be detrimental for wear protection. (These esters can compete with additives for the surface, reducing additive performance).

Our latest non-polar extreme performance esters do not compete with anti-wear additives for the surface hence the step-change in wear protection realised by the Rock Oil Carbon Series products demonstrated below:

The Sequence IV-A (ASTM D6891) is the oil industry's benchmark flat tappet valve-train wear test.

API SL Limit = 120 microns maximum wear on cam lobes
API SM & SN Limit = 90 microns maximum wear on cam lobes
Rock Oil Carbon 5W-30 = 26 microns

In addition to outstanding wear protection, to release full engine power the Rock Oil Carbon Series has been developed to significantly reduce friction through the use of unique organic friction modifier technology.

Features & Benefits

Tri-Synthetic Formula -includes Non-Polar Synthetic Ester, Polyalphaolefin (PAO) and a proprietary next generation fully synthetic base oil

Outstanding resistance to Permanent Viscosity Loss (PVL) through use of active, self healing Viscosity Modifiers - extremely important for highly stressed, tight tolerance racing engines

Exceptionally low NOACK volatility - results in very low oil consumption

Unsurpassed wear protection - especially important for racing applications

Rock Oil Carbon Series specifications:
All grades : API SN, SM, CF
0W-40 only : BMW LL-01, MB 229.5, PORSCHE A40, NISSAN GTR
10W-60 only : BMW 'M' Models

Important Note: The Carbon Series of products are not recommended for road use where vehicles are fitted with after-treatment devices; specifically Diesel Particulate Filters (DPF's).

Typical Physical Characteristics

SAE Viscosity (J300) 5W-30 0W-40 10W-50 10W-60
Density @ 15°C (kg/L) 0.863 0.851 0.860 0.857
Viscosity @ 40°C (cSt) 69.0 82.0 117.0 169.0
Viscosity @ 100°C (cSt) 11.5 14.6 17.6 24.3
Viscosity Index 160 186 166 175

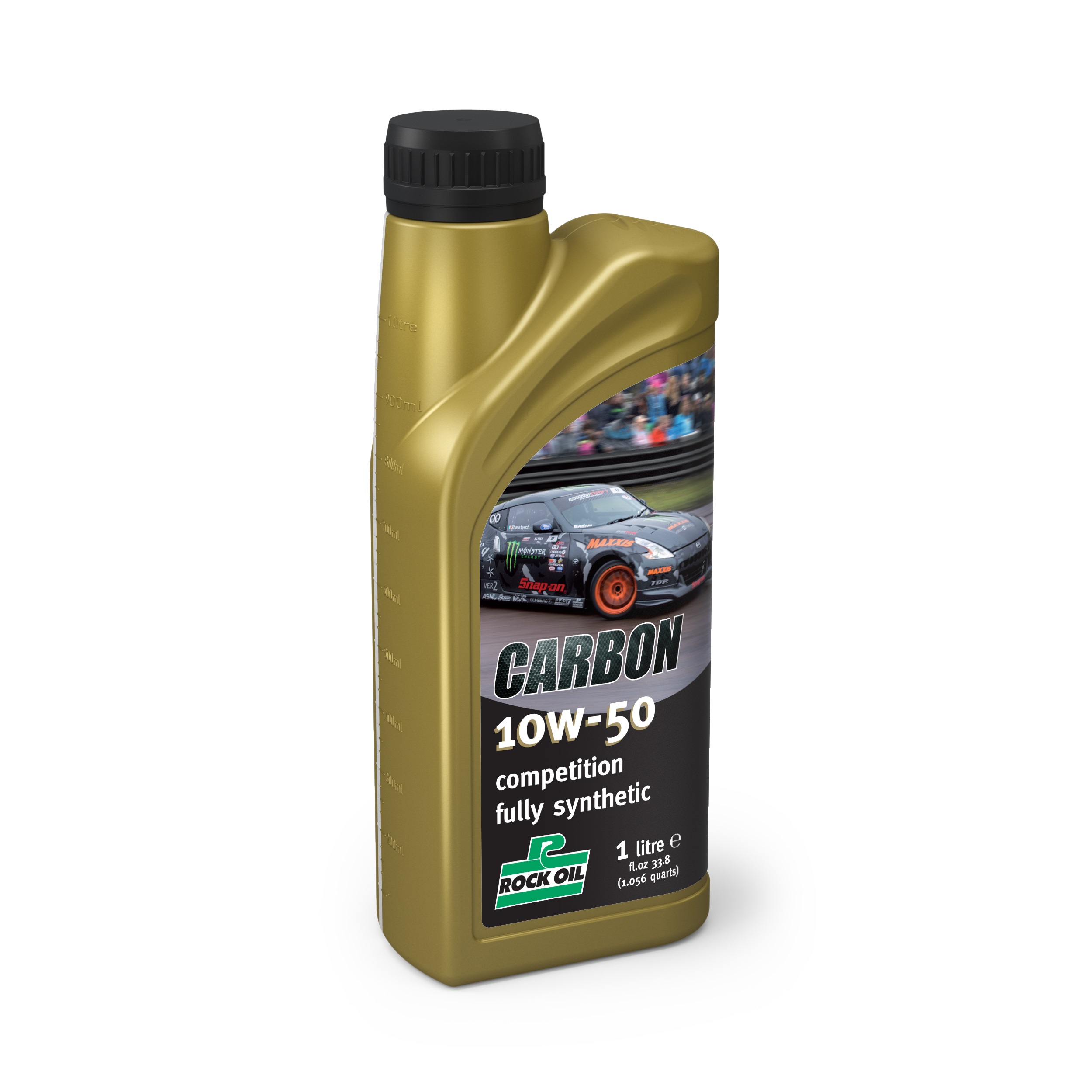

Carbon 10w50

Packing: 1 L

Carbon Series (Competition Fully Synthetic)

Rock Oil's R&D facility has successfully developed the next generation in 100% synthetic automotive racing oils – the Carbon Series. This development, in conjunction with extensive field-trials with leading racing teams has resulted in a significant breakthrough in lubrication performance.

Market leading additive technology has been combined with the three types of advanced next generation synthetic base stocks. Independent tests have shown that conventional synthetic ester base oils of the polar type have an affinity for internal engine surfaces which can actually be detrimental for wear protection. (These esters can compete with additives for the surface, reducing additive performance).

Our latest non-polar extreme performance esters do not compete with anti-wear additives for the surface hence the step-change in wear protection realised by the Rock Oil Carbon Series products demonstrated below:

The Sequence IV-A (ASTM D6891) is the oil industry's benchmark flat tappet valve-train wear test.

API SL Limit = 120 microns maximum wear on cam lobes
API SM & SN Limit = 90 microns maximum wear on cam lobes
Rock Oil Carbon 5W-30 = 26 microns

In addition to outstanding wear protection, to release full engine power the Rock Oil Carbon Series has been developed to significantly reduce friction through the use of unique organic friction modifier technology.

Features & Benefits

Tri-Synthetic Formula -includes Non-Polar Synthetic Ester, Polyalphaolefin (PAO) and a proprietary next generation fully synthetic base oil

Outstanding resistance to Permanent Viscosity Loss (PVL) through use of active, self healing Viscosity Modifiers - extremely important for highly stressed, tight tolerance racing engines

Exceptionally low NOACK volatility - results in very low oil consumption

Unsurpassed wear protection - especially important for racing applications

Rock Oil Carbon Series specifications:
All grades : API SN, SM, CF
0W-40 only : BMW LL-01, MB 229.5, PORSCHE A40, NISSAN GTR
10W-60 only : BMW 'M' Models

Important Note: The Carbon Series of products are not recommended for road use where vehicles are fitted with after-treatment devices; specifically Diesel Particulate Filters (DPF's).

Typical Physical Characteristics

SAE Viscosity (J300) 5W-30 0W-40 10W-50 10W-60
Density @ 15°C (kg/L) 0.863 0.851 0.860 0.857
Viscosity @ 40°C (cSt) 69.0 82.0 117.0 169.0
Viscosity @ 100°C (cSt) 11.5 14.6 17.6 24.3
Viscosity Index 160 186 166 175

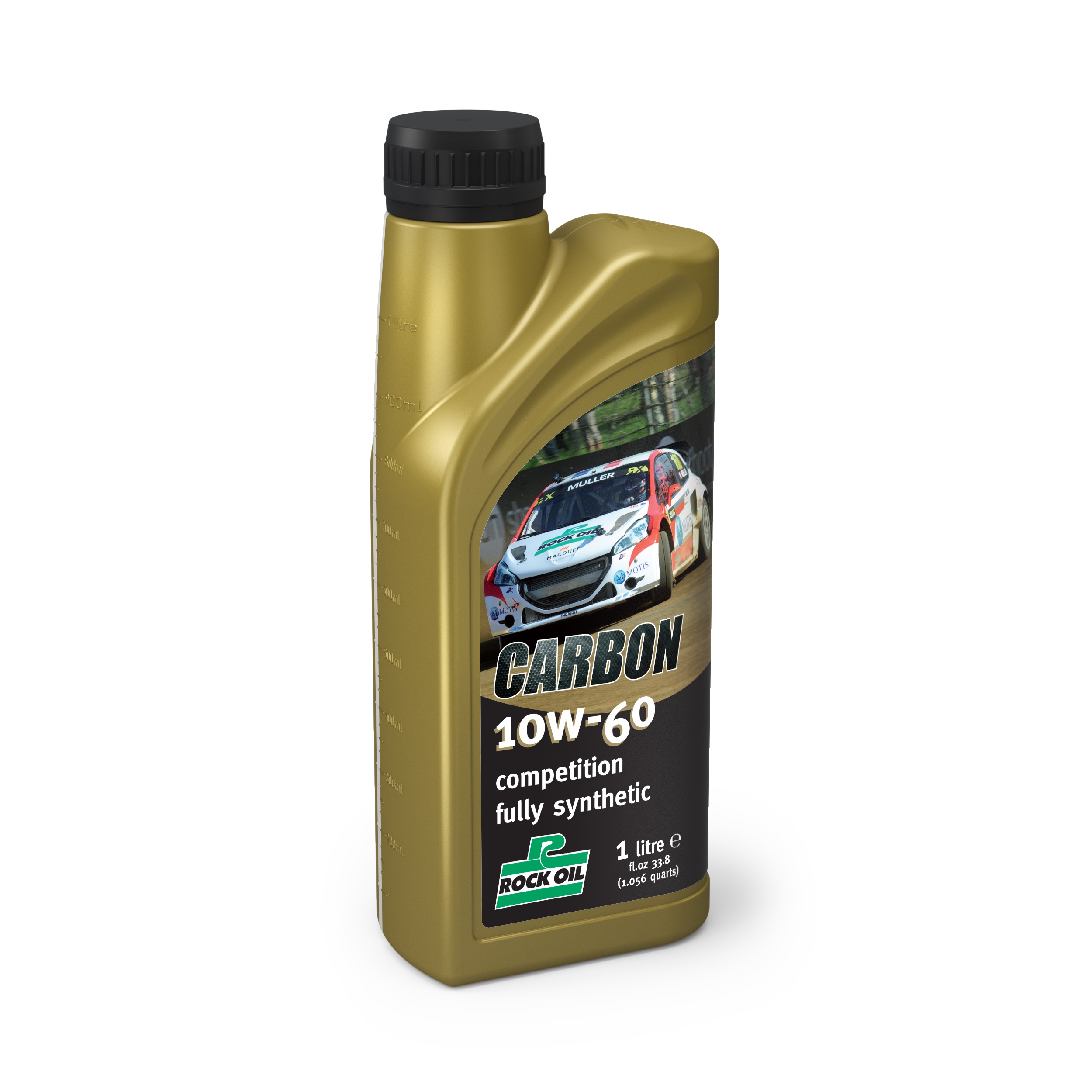

Carbon 10W60

Packing: 1 L
Carbon Series (Competition Fully Synthetic)

Rock Oil's R&D facility has successfully developed the next generation in 100% synthetic automotive racing oils – the Carbon Series. This development, in conjunction with extensive field-trials with leading racing teams has resulted in a significant breakthrough in lubrication performance.

Market leading additive technology has been combined with the three types of advanced next generation synthetic base stocks. Independent tests have shown that conventional synthetic ester base oils of the polar type have an affinity for internal engine surfaces which can actually be detrimental for wear protection. (These esters can compete with additives for the surface, reducing additive performance).

Our latest non-polar extreme performance esters do not compete with anti-wear additives for the surface hence the step-change in wear protection realised by the Rock Oil Carbon Series products demonstrated below:

The Sequence IV-A (ASTM D6891) is the oil industry's benchmark flat tappet valve-train wear test.

API SL Limit = 120 microns maximum wear on cam lobes
API SM & SN Limit = 90 microns maximum wear on cam lobes
Rock Oil Carbon 5W-30 = 26 microns

In addition to outstanding wear protection, to release full engine power the Rock Oil Carbon Series has been developed to significantly reduce friction through the use of unique organic friction modifier technology.

Features & Benefits

Tri-Synthetic Formula -includes Non-Polar Synthetic Ester, Polyalphaolefin (PAO) and a proprietary next generation fully synthetic base oil

Outstanding resistance to Permanent Viscosity Loss (PVL) through use of active, self healing Viscosity Modifiers - extremely important for highly stressed, tight tolerance racing engines

Exceptionally low NOACK volatility - results in very low oil consumption

Unsurpassed wear protection - especially important for racing applications

Rock Oil Carbon Series specifications:
All grades : API SN, SM, CF
0W-40 only : BMW LL-01, MB 229.5, PORSCHE A40, NISSAN GTR
10W-60 only : BMW 'M' Models

Important Note: The Carbon Series of products are not recommended for road use where vehicles are fitted with after-treatment devices; specifically Diesel Particulate Filters (DPF's).

Typical Physical Characteristics

SAE Viscosity (J300) 5W-30 0W-40 10W-50 10W-60
Density @ 15°C (kg/L) 0.863 0.851 0.860 0.857
Viscosity @ 40°C (cSt) 69.0 82.0 117.0 169.0
Viscosity @ 100°C (cSt) 11.5 14.6 17.6 24.3
Viscosity Index 160 186 166 175
